The Lighting Diffuse Intensity defines degree to which light is scattered on being reflected from the surface.

It has a range of 0 to 100. A higher Diffuse Intensity:

•Increases surface detail

•Increases brightness

High and low diffuse intensity examples are provided below.

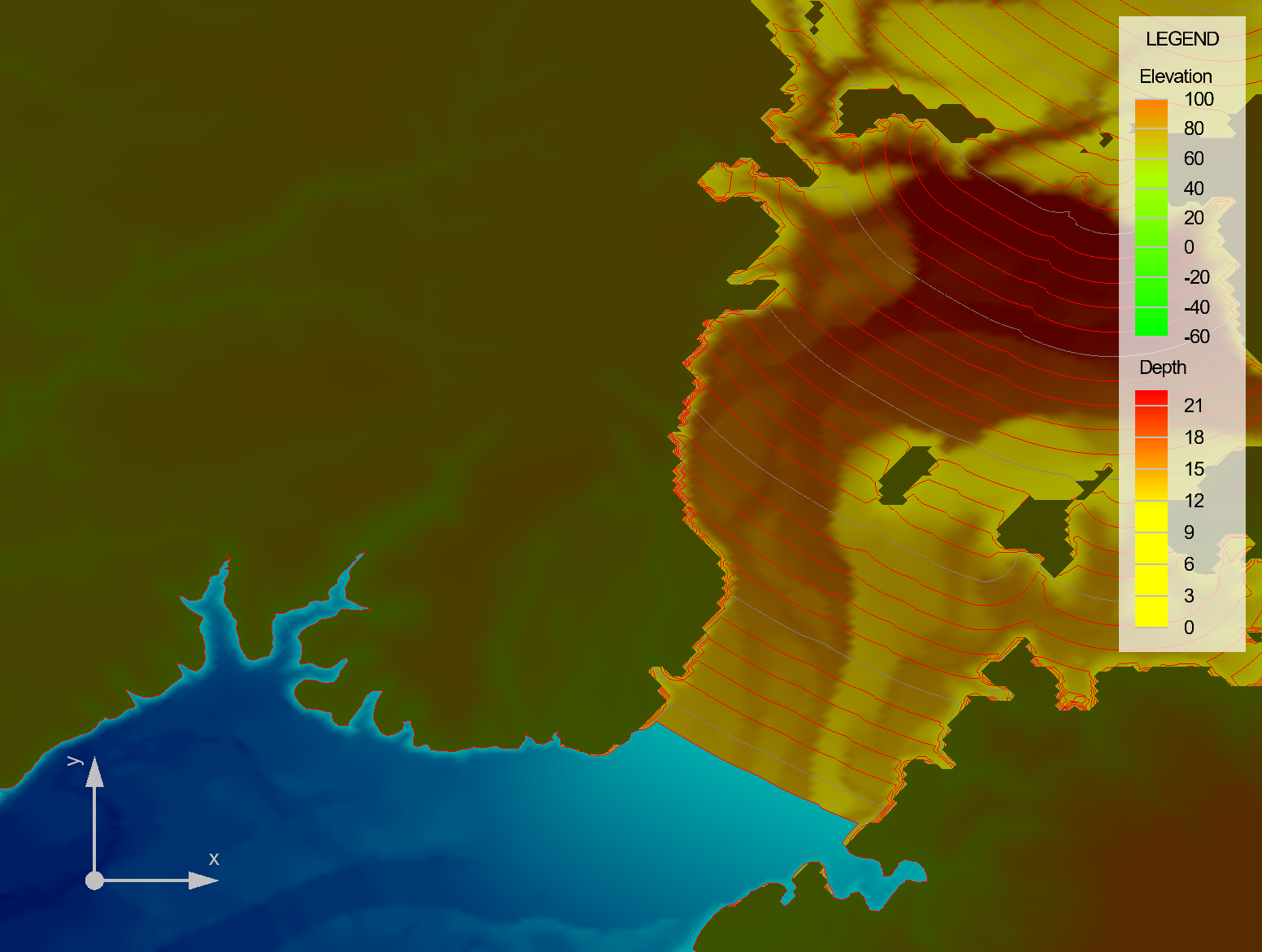

Figure 3: Low Diffuse Intensity

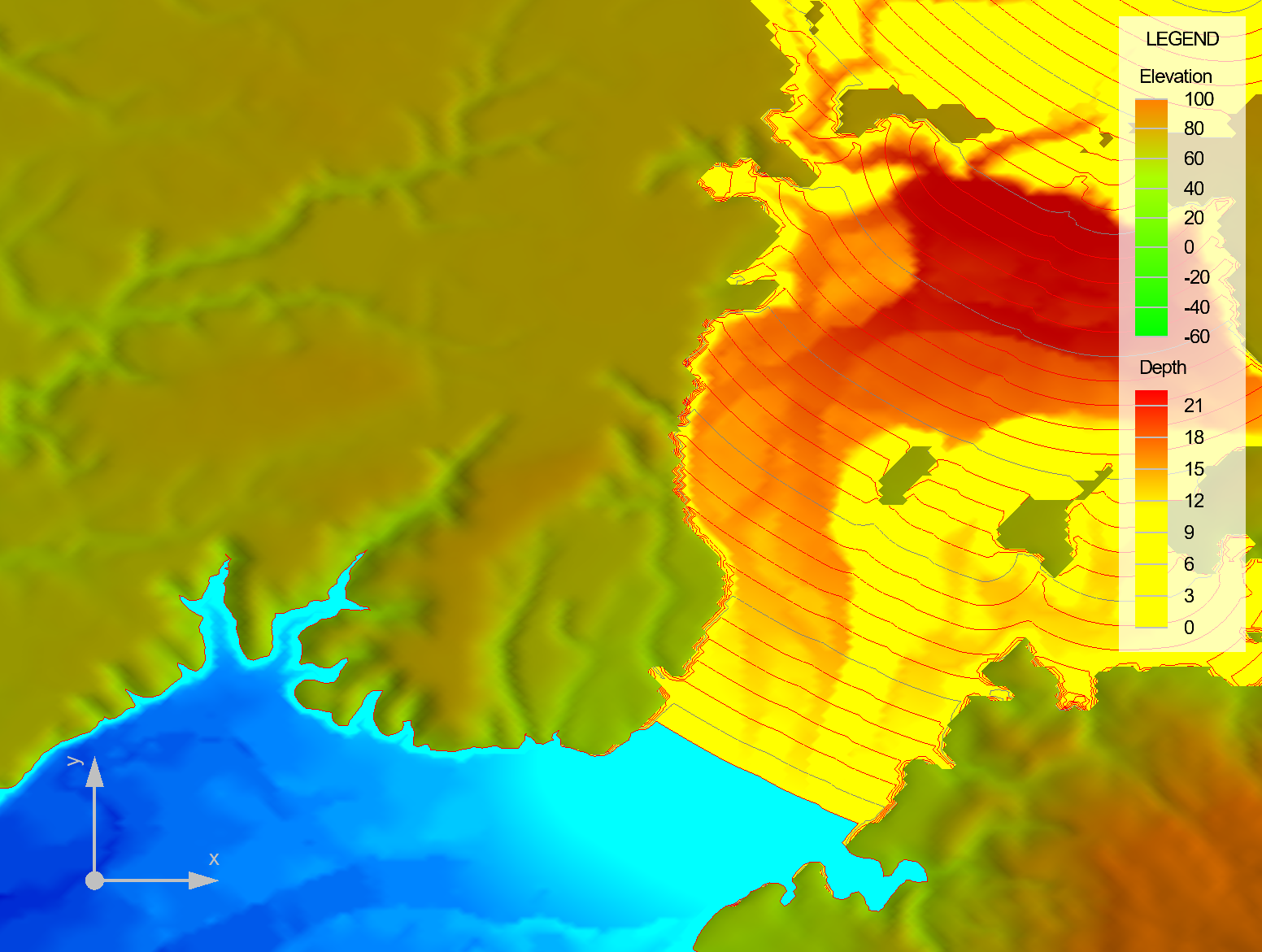

Figure 4: High Diffuse Intensity
