Outside Area

Delete Nodes outside a user defined area.

Click Surface > Nodes > Delete > Outside Area; or

Click the Delete Nodes Outside Area Tool-button.

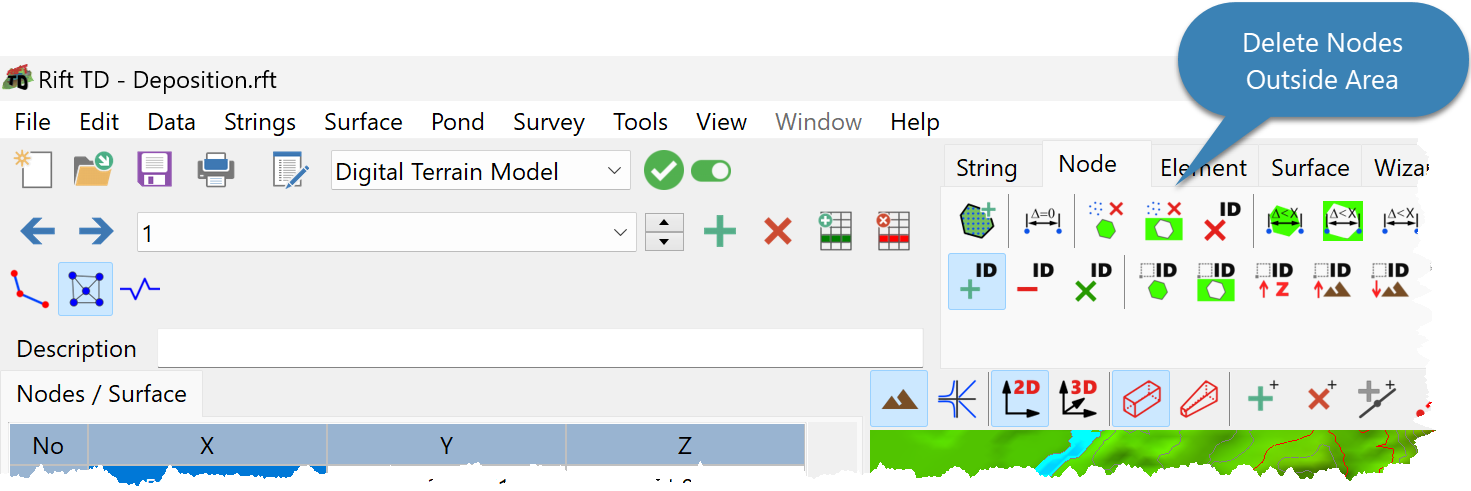

Delete Nodes Outside Area Tool-button

Define the Area on the DTM View.

Click OK to accept the area.

Define Area Dialog

Rift TD deletes Nodes outside the area.

Elements connected to the Nodes are also deleted.
